Description
Overview
The 48V 5kWh LiFePO4 battery is a perfect choice for solar energy storage systems, ensuring efficiency and long-term reliability. This advanced battery is designed to offer a robust and stackable solution to meet the energy demands of residential and commercial solar installations.
Key Features
- 5kWh capacity ensures ample storage for energy needs.
- LiFePO4 technology provides excellent safety and cycle life.

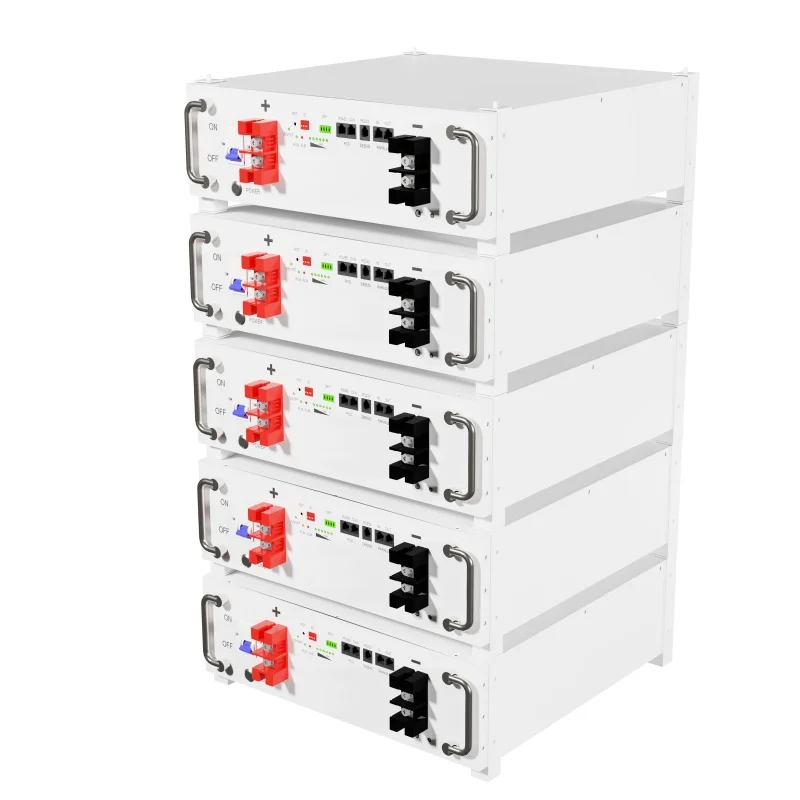

- Stackable design allows flexibility in installation.
- Durability and a lifespan of up to 6000 cycles.
- Compatibility with both off-grid and hybrid grid systems.
This battery is ideal for installations where space is a premium and flexibility is essential. Before purchasing, confirm your system voltage compatibility and installation requirements to ensure optimal performance and integration with your solar energy system.
Quick Specifications
- Battery Type: LiFePO4
- System Voltage: 51.2 V
- Cycle life: 6000 Times
- Weight: 48 kg
| Battery Type | LiFePO4 |
|---|---|
| Model Number | GLR-100 Series |
| System Voltage | 51.2 V |
| Output Power Range | 5-60KWh |
| Dimension (L*W*H) | 440*440*133 mm (17.32*17.32*5.24in) |
| Weight | 48 kg (105.82lb) |
| System Type | Stackable, Rack-Mounted |
| Type | Split |
| Communication Port | CAN, Wifi, RS-232, Bluetooth, RS485 |
| Protection Class | IP20 |
| Grid Connection | Off grid, Hybrid grid |
| Cycle life | 6000 Times |
| OEM/ODM | Accepatable |
| Design Lifespan | 15 years |
| Multi-module(connection) | 2PC(Min)-16PC(Max) |
| Certification | CE/EMC/UN38.3/MSDS |
| Display | LED+LCD |
Application
Product Details
About AJ POWER CO., LTD.
AJ POWER CO., LTD. supports international B2B buyers with battery, solar and energy-equipment sourcing.
For home energy storage, we focus on usable energy, system voltage, installation format, communication and inverter matching.
Our team can review available configurations and prepare a project-specific quotation. Final availability and customization are confirmed per order.
Frequently Asked Questions
Q: What is the expected cycle life of this battery?
A: The battery offers a cycle life of up to 6000 cycles.
Q: Can this battery be used in both off-grid and hybrid grid systems?
A: Yes, it supports compatibility with both off-grid and hybrid grid systems.
Q: What are the dimensions and weight of the battery?
A: The dimensions are 440*440*133 mm and it weighs 48 kg.
Q: How many modules can be connected together?
A: You can connect a minimum of 2 and a maximum of 16 modules.
Q: What communication ports are available?
A: The battery includes CAN, Wifi, RS-232, Bluetooth, and RS485 ports.
Related guides
Need help matching the right configuration?
Send your application, required specifications and order quantity to the AJPOWER team for review.
